SYA气控阀产品手册 SYA PNEUMATIC CONTROL VALVE
工业机械Industrial Machinery
OEM/ODM
专业制造 Professional Manufacturer
上海阮隆工业自动化电器有限公司Shanghai Ruan Long Industrial Automation Appliance Co., Ltd.
| Symbol | Port size | Applicable series |
| M5 | M5 x 0.8 | SYA3000 |
| 01 | 1/8 | SYA5000 |
| 02 | 1/4 | SYA7000 |
| Symbol | Port size | Applicable series |
| C4 | One-touch fitting for ø4 | SYA3000 |
| C6 | One-touch fitting for ø6 | |
| C4 | One-touch fitting for ø4 | SYA5000 |
| C6 | One-touch fitting for ø6 | |
| C8 | One-touch fitting for ø8 | |
| C8 | One-touch fitting for ø8 | SYA7000 |
| C10On | e-touch fitting for ø10 |
| One-touch fitting (Inch size) | ||
| Symbol | Port size | Applicable series |
| N3 | One-touc fitting for 05/32" | SYA3000 |
| N7 | One-touch fitting for 01/4" | |
| N3 | One-touch fitting for ø5/32" | SYA5000 |
| N7 | One-touch fitting for 01/4" | |
| N9 | One-touch fitting for 05/16" | |
| N9 | One-touch fitting for 5/16" | SYA7000 |
| N11 One | -touch fitting for ø38" | |
| Nil | Rc |
| F | G |
| N | NPT |
| T | NPTF |
| Nil | Without bracket |
| F1 | With foot bracket(2 position single only) |
| F2 | With side bracket |
| 3 | SYA3000 |
| 5 | SYA5000 |
| 7 | SYA7000 |
| Nil | Rc |
| F | G |
| N | NPT |
| T | NPTF |
| Symbol | Port size | Applicable series |
| Nil | Without sub-plate | |
| 01 | 1/8With sub-plate | SYA3000 |
| 02 | 1/4With sub-plate | SYA5000 |
| 02 | $\overline { { 1 / _ { 4 } } }$ With sub-plate | SYA7000 |
| 03 | 3/8With sub-plate | |

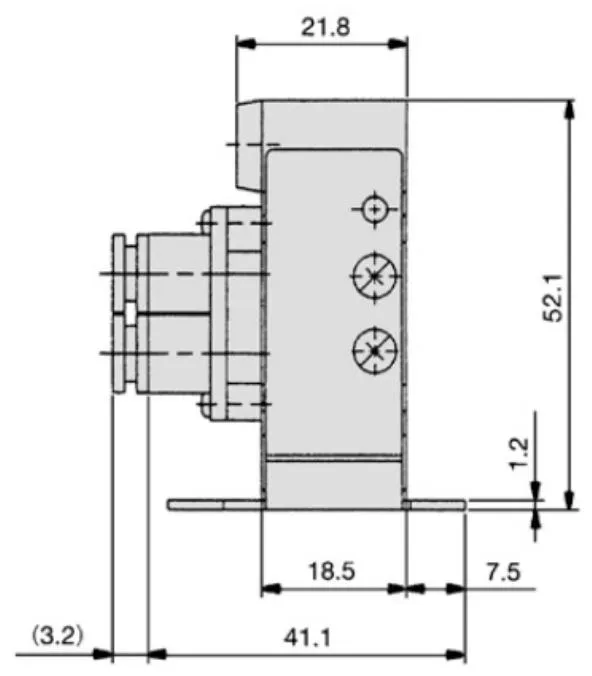

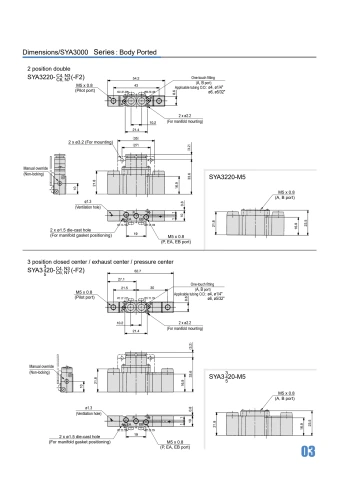

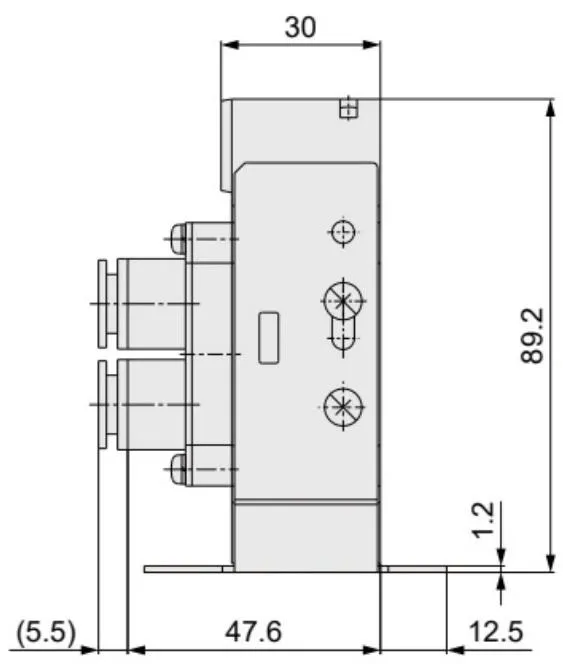

2 position single SYA3120- C4, N3 C6,N7 (-F2)<br>Foot bracket SYA3120- C4, N3-F1 C6, N7
SYA3120-M5

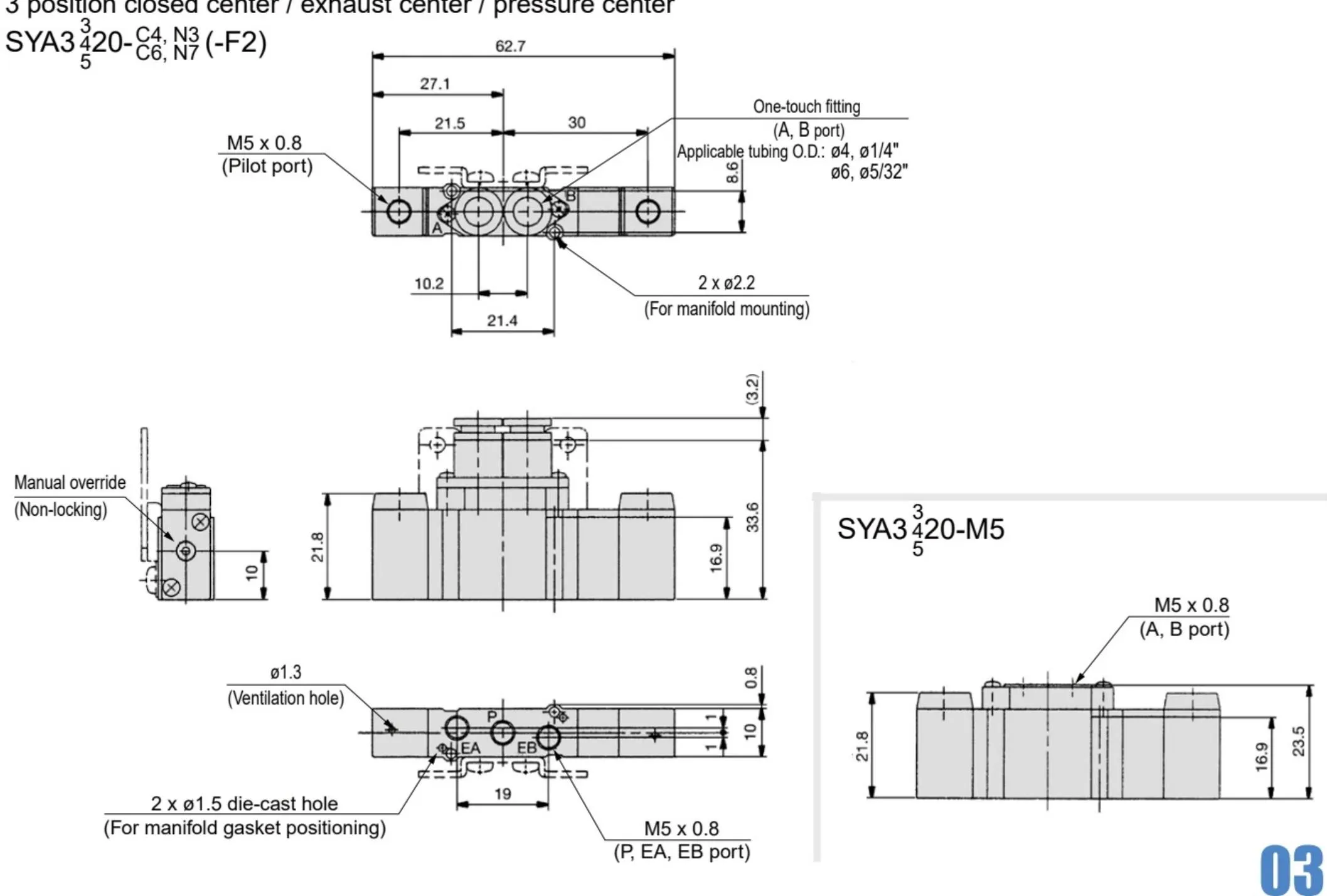

3 position closed center / exhaust center / pressure center
3 position closed center / exhaust center / pressure center 3
SYA3440-01 5
3 position closed center / exhaust center / pressure center 3

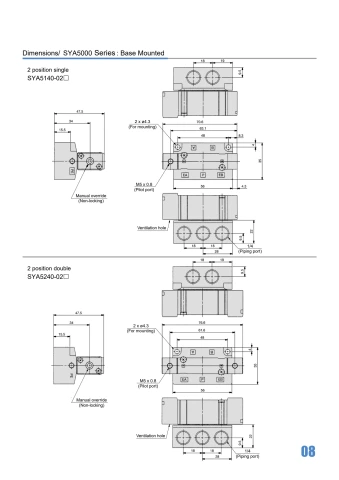

SYA5440-02□ 5

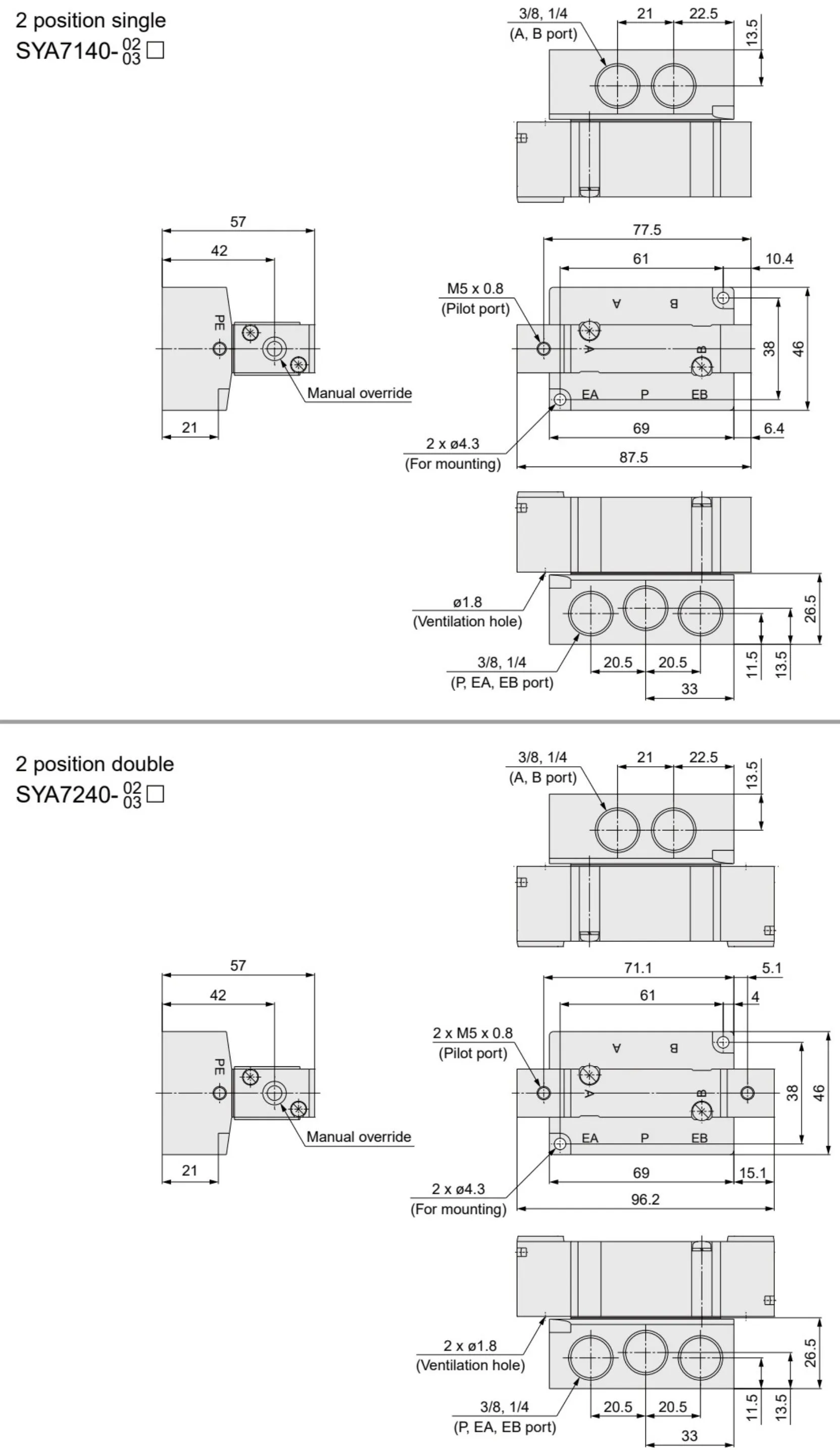

2 position single

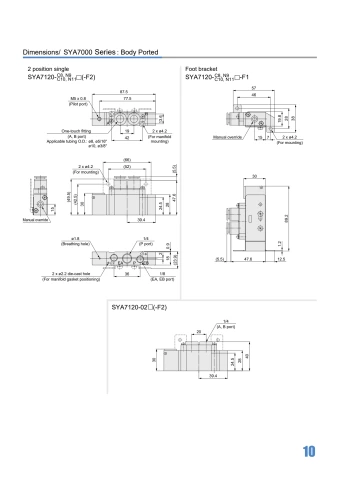

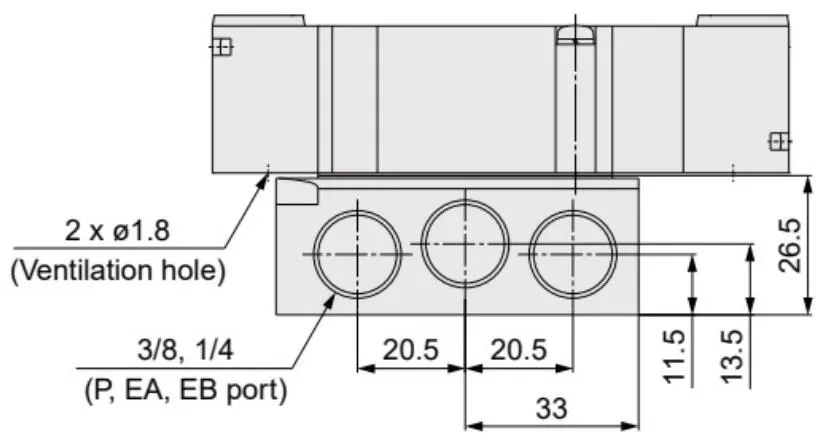

Foot bracket SYA7120-C8 N1 □-F1 C10, N11
SYA7120-02□(-F2)
3 position closed center / exhaust center / pressure center
\sin 7 _ { 5 } ^ { 3 } 4 0 - \cos ^ { 2 } \square 3/8, 1/
