Worldwide Air Conditioner Partner
R290 Tri-thermal Max
100% Heating Capacity at -10°C
38 dB(A) at 3m
4 Core Safety Protections
7-Inch Smart Touch Display
3-Zone Control
AI Smart Control
Flexible Multi-Zone Temperature Control
3-Zone Independent Temperature Control, Adapting to Diverse Spatial Needs
Focusing on different home temperature control scenarios, it supports precise differential temperature adjustment for three independent zones (e.g., living room, master bedroom, children's room/study). It delivers personalized comfort experiences for different life scenarios, demonstrating high-end control over "detailed comfort".
Reliable Safety Protection
Sealed E-Box
Prevents flammable gas from entering the control box, ensuring secure operation even under extreme conditions
Refrigerant Sensor
Detects leaks in seconds to trigger early warnings and prevent hazards
Micro Bubble Air Vent
Prevents flammable gas from entering the control box, ensuring secure operation even under extreme conditions
Magnetic Filter (Optional)
Stops iron particles from causing premature wear or jamming in circulation pumps and control valves
Antifreeze Valve (Optional)
Operates purely on a thermal actuator without electricity, ensuring reliable freeze protection even during power outages
Wide Operating Temperature Range & High Outlet Water Temperature
Cooling
Heating
DHW
Super High Energy Efficiency
A+++ at 35°C and 55°C
Highest SCOP to 5.09
DC Inverter EVI Compressor
Superior heating stability at low temperatures Higher condensing temperature
BLDC Motors
Seamless stepless speed regulation Maintenance-free & durable
DC Inverter Pump
Lowers power consumption Smart, dynamic speed adjustment
Enlarged Tube-fin Heat Exchanger
Inner-grooved copper tube Anti-corrosion hydrophilic fins
Bionic High Air Flow Fan
Lower running noise More stable air flow blowing
High Efficiency Plant Heat Exchanger
Larger heat exchange area
Practical Functions
Al Energy Saving & Smart Grid
Convenience & Intelligence
Auto-adjusts temp to real-time ambient
conditions — no manual tweaks, just effortless, worry-free operation.
Dust Removal
Cascade for Higher Capacity
Learns historical data to predict & adjust the daily temp when offline, keeping home comfort consistent at all times.
Max 8 units cascade, Max 320kw for heating
Antifreeze Mixing Ratio
7-inch Smart Touch Display Wired Controller
Intuitive control
Upgrade user experience with user-friendly design.
Built-in Wi-Fi module
Easy to connect with the APP, without any other kit installation.
Intelligent commissioning
Step-by-step guidance, without complex setup process and long setup times.
TCL IOT Platform for Quick After-service
Remote Monitoring and Debugging
keep an eye on your devices in real-time.
Device Information Query:
get all the details and historical data you need.
Check the Faults in Advance:
No need to make multiple trips for repairs.
Convenient and Intelligent APP Control
$49
Control
. On/off operation and change modes
· Change room and hot water temperatures
Monitor
: consumption data
. System status Power
OTA Update
· Online Update

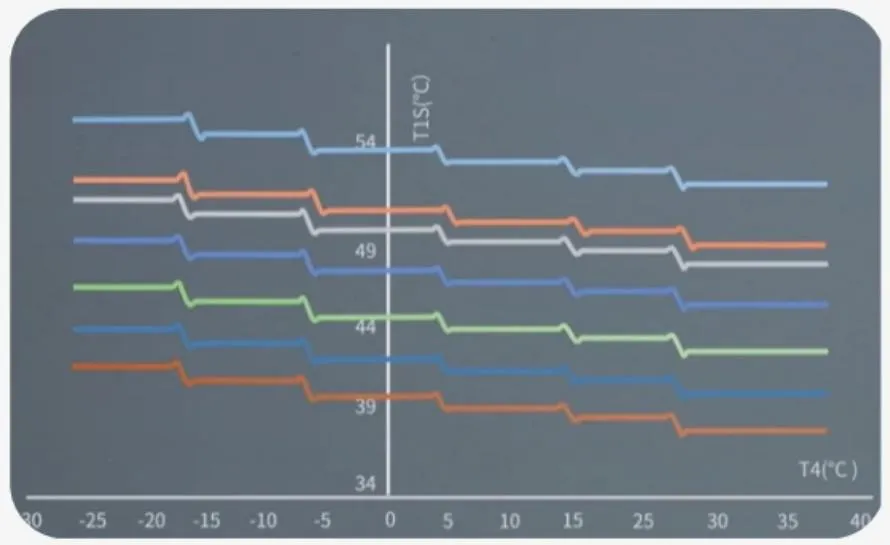

DIY Curves for Comfort
8 pre-set + 1 self-defined temperature curves, flexible adaptation to operating conditions in different climates.
I USB Update and Commissioning
Export heat pump parameters to a USB drive after initial setup. Quickly import them to subsequent projects to streamline installation
Disinfection Mode
·Designed to guarantee energy our safety and health.
·It works by heating the water to about 7 0 ^ { \circ } \mathsf { C }
Legionella die immediately
90% legionella die in two minutes
90% legionella die in two hours
Ideal temperature for legionella breeding
legionella survives but not active
Anti-freezing Mode
· Detect if the ambient temperature is less than 4C.
. When the water temp is lower than T2, electric auxiliary heat turns on.
· When the water temp is lower than T1, compressor and electric auxiliary heat turn on.
